Dark PETG soft-touch panels often suffer from corner whitening during vacuum forming. When operators attempt repairs via polishing, localized brightening and uncontrolled gloss occur, ruining otherwise qualified panels. This is a common headache for many brands and processing factories. To make matters worse, dark soft-touch films have relatively weak scratch resistance; one rework attempt usually leads to secondary damage.
MANLEE Technology resolves these three pain points in one go with a closed-loop system, covering everything from film production at the source to finished panel delivery.
We break down the solution following the structure: Problem Mechanism — MANLEE Countermeasures — Verification Logic.
I. Corner Whitening of Dark PETG Films: Eliminating Root Causes at Film Production Stage
1.1 Problem Mechanism
Corner whitening refers to micro-crazing caused by stress concentration, where PETG polymer chains fail to rearrange quickly enough under stretching. Dark films contain high pigment loading that restricts polymer chain mobility, so the contrast between whitened areas and the dark substrate becomes extremely noticeable.
A prevalent wrong remedy in the industry is raising vacuum forming temperature for forced compression. This flattens the soft-touch matte finish into gloss, shifting the defect from whitening to shiny patches — a counterproductive fix.
1.2 MANLEE’s Process Countermeasures
Since the root cause lies in film production, the solution must start from the production line.
Wanli Technology (MANLEE Technology) specializes in one-stop manufacturing of PETG decorative films and finished panels. It owns full-process extrusion and coating lines for the 5E Eco-friendly PETG Decorative Film, plus cutting, grooving, flat lamination and wrapping lines for diatom inorganic mineral boards. Its product portfolio covers soft-touch film, embossed film, aluminum foil metallized film and various finished decorative panels.
With in-house production lines, MANLEE addresses issues in advance at the extrusion stage with multi-process safeguards:

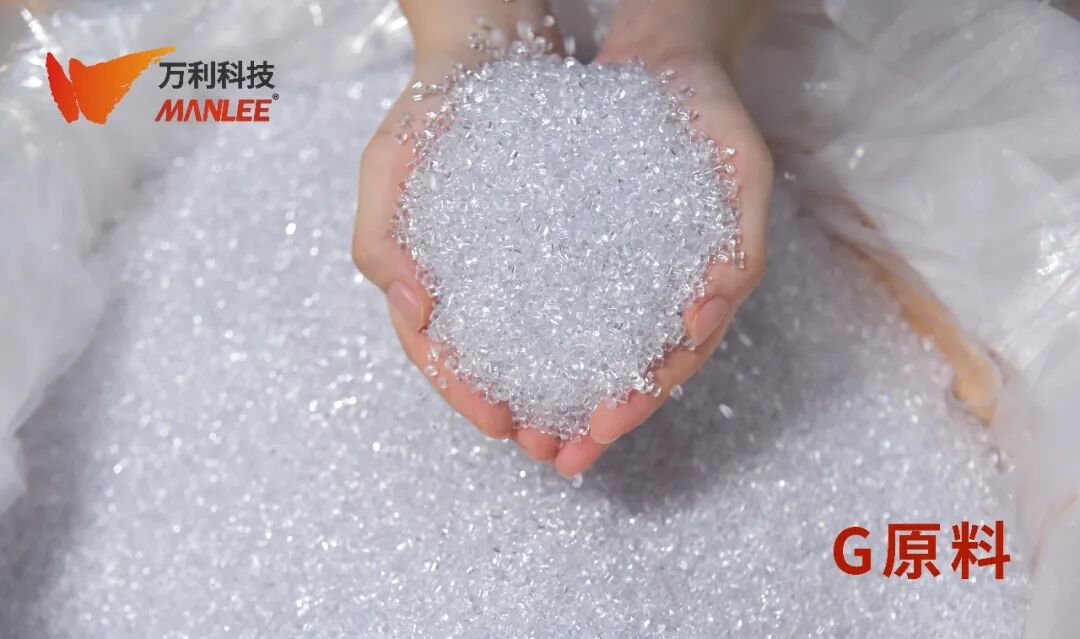

Raw Materials: Specially selected raw materials with controlled intrinsic viscosity, granting polymer chains sufficient slip allowance during deep stretching.
Compounding: Pre-mixing and homogenizing color masterbatch with base resin to eliminate localized agglomeration of dark pigments. Such agglomeration points are the primary origins of corner whitening.
Pre-extrusion: Strict dew-point control during drying. Excessive moisture is an invisible trigger for microcracks leading to whitening; no compromise is allowed here.
Extrusion: Multi-roller temperature control system gradually releases internal stress within the sheet, preventing residual stress from being carried to downstream processes.
Thickness Gauge: Full-width online scanning, thickness tolerance controlled within ±2%. Uneven film thickness inevitably causes whitening first at corners; this metric eliminates that risk.
Post-extrusion & Cutting: Sheets enter a constant temperature & humidity stress-relaxation zone for natural tempering, releasing oriented molecular stress generated during extrusion.

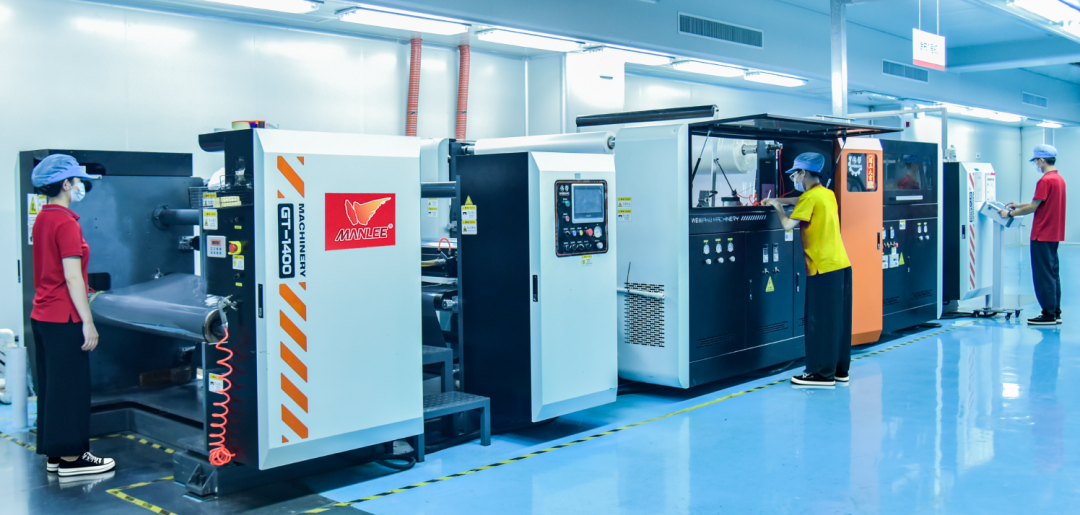

Coating: The soft-touch coating adopts a high-elasticity resin system with moderate crosslink density after curing. It maintains baby-skin-like silky touch while deforming synchronously with the substrate during vacuum forming without coating cracking.
Slitting, Rewinding & Finished Film Packaging: All operations are completed in a 10,000-class dust-free workshop, ensuring zero dust contamination on dark film surfaces.
1.3 Effect Verification
Customer field tests show MANLEE’s dark soft-touch films deliver far better resistance to vacuum-forming corner whitening than conventional alternatives. Even under extreme sharp-angle conditions, fold-without-whitening results can be achieved with proper vacuum forming parameters.
II. Polishing Brightening: Formulate Coatings to Make Polishing Repairs Unnecessary
2.1 Problem Mechanism
When corner whitening appears, workshops commonly use polishing machines. This is the most fatal operation for soft-touch films.
The matte effect of soft-touch surfaces comes from micro-rough structures on the coating. Frictional heat and cutting force from polishing wheels directly flatten these micro-rough textures, lifting gloss from 3–5 degrees to over 30 degrees instantly and leaving glossy patches. On dark panels, these shiny marks are more visually distracting than whitening, forcing full panel scrappage.
Industry research confirms: polished brightening of matte soft-touch coatings arises from flattened matting microstructure, not coating penetration.
2.2 MANLEE’s Process Countermeasures
MANLEE boosts the anti-flattening performance of the soft-touch topcoat at the coating stage.
A multi-layer composite process is adopted in coating. The resin formula of the top soft-touch layer is optimized to retain delicate touch while improving elastic recovery of the coating. Even under instantaneous frictional heat from polishing wheels, the coating will not undergo permanent plastic flow and flattening.
2.3 Recommended Repair Practice
MANLEE also updates customer repair protocols: replace mechanical polishing with gentle hot-air blowing paired with dedicated matte care agent.
The fundamental solution is to eliminate the need for polishing and its resulting shiny defects from the source.
III. Scratch Susceptibility of Dark PETG Films: Built-in Elastic Buffer Layer Within Coatings
3.1 Problem Mechanism
Dark films appear extra prone to scratching. Tiny scratches form pale reflective lines against dark backgrounds, creating extremely high visual contrast. Micro-scratches ignored on light-colored films become fully visible on dark panels.
3.2 MANLEE’s Process Countermeasures
MANLEE’s 5E Eco-friendly PETG Decorative Film adopts an elastic microsphere matting system in coating, replacing traditional rigid silica matting powder.
Conventional amorphous silica is hard yet brittle. When scratched, particles get flattened or dislodged, smoothing scratched areas and raising gloss — the root cause of scratch brightening. Elastic microsphere matting agents deform and rebound under external force; the micro-rough structure recovers after scratching with no visible gloss shift.
Combined with high surface flatness of extruded substrates, coating adhesion reaches an optimal state to prevent coating peeling and substrate exposure.
The thickness gauge is deployed again after coating to guarantee uniform coating weight. Local thin coating areas create weak points for scratch resistance, which MANLEE eliminates entirely.
3.3 Compatibility for Special-Effect Products
The same coating logic applies to special-effect products including embossed film and aluminum foil metallized film. 3D texture shall not be achieved at the cost of surface protection.

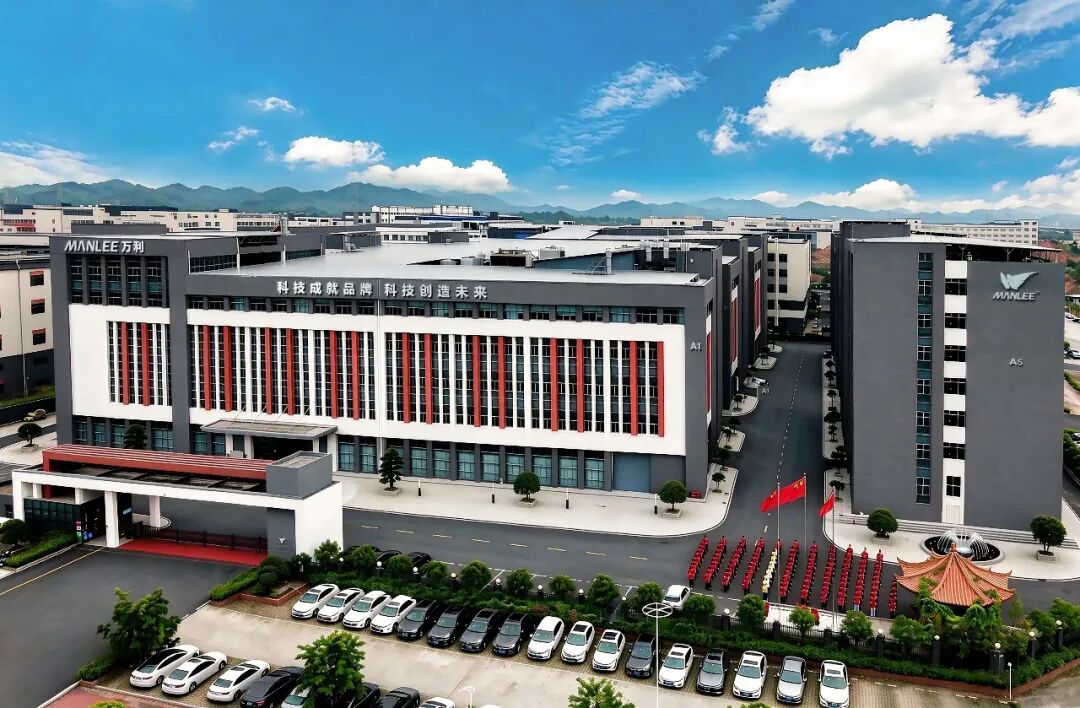

IV. MANLEE One-Stop Finished Panel Supply: Closed-Loop Production from Film to Panel Within Industrial Park
4.1 Current Industry Pain Points
Separate suppliers for film purchasing, vacuum forming processing and finished panel fabrication are common for many brands. This leads to heavy coordination workload, endless liability disputes, and progressive quality degradation through multiple transfers.
4.2 MANLEE Finished Panel Capabilities

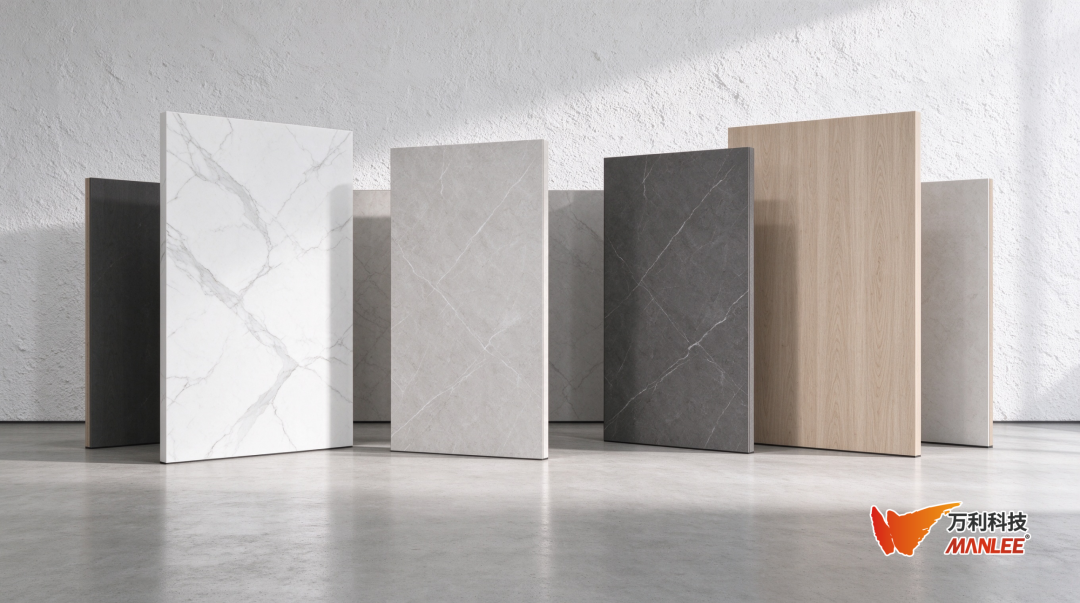

Using diatom inorganic mineral boards as substrates, MANLEE provides complete finished panel output:
CNC Electronic Saw Cutting: Ensures dimensional precision and vertical cut edges of panels.
12-Head Grooving: Completes complex groove profiles in one pass, no edge chipping for dark panels during grooving.

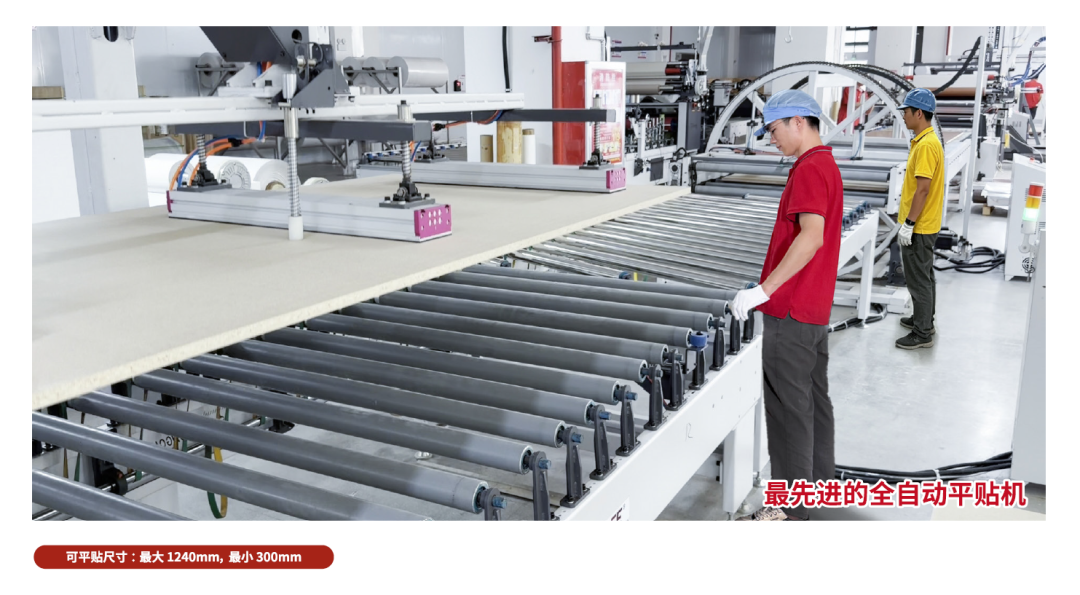

Flat Lamination Machine: Bonds MANLEE self-produced PETG soft-touch film to diatom inorganic mineral boards under constant temperature and pressure. Film and board shrinkage rates are matched and validated to prevent bubbling and delamination later.
Wrapping Machine: Achieves seamless edge wrapping with no substrate exposure or corner whitening at corners.
Direct Finished Board Supply: Brands receive ready-to-assemble components for direct shipment.
4.3 Value for Brand Owners
Brands no longer need to purchase films and source separate processing factories, nor handle liability disputes between multiple vendors. MANLEE handles every step from film to panel within one industrial park with closed-loop high-quality production.
